What Are the Differences Between Different Colors of ESD Packaging Bags?

Electrostatic Discharge (ESD) is a major concern in the electronics industry, as even a small static charge can damage sensitive components, leading to malfunctions or complete failure. To mitigate this risk, ESD packaging bags play a crucial role in protecting electronic components during handling, storage, and transport. However, not all ESD packaging bags are the same. These bags come in different colors, and each color is designed for specific applications based on the level of protection required. In this article, we will explore the differences between ESD packaging bags of various colors and discuss their suitable applications in the electronics and manufacturing industries.

1. Introduction

ESD packaging bags are integral to ensuring the safety and longevity of electronic components. They are used to prevent static electricity from accumulating, thereby safeguarding sensitive electronic parts from electrostatic discharge. The color of an ESD bag is not just a cosmetic choice—it corresponds to the material properties and intended purpose of the bag. By understanding these differences, manufacturers can select the right ESD bags for their specific needs.

This article aims to explore the differences in ESD packaging bags based on their color, highlighting the performance characteristics, benefits, and best applications for each color.

2. Basic Knowledge of ESD Packaging Bags

Definition and Function

An ESD packaging bag is a type of protective bag designed to prevent static electricity from damaging electronic components. Static electricity can easily build up during handling, and when discharged, it can cause permanent damage to delicate circuits. These bags are essential in industries such as electronics manufacturing, assembly, and repair.

The primary functions of ESD bags include:

Preventing Static Electricity Accumulation: ESD bags are designed to dissipate electrostatic charges to the ground, thereby preventing the buildup of static electricity.

Protecting Electronic Components: By preventing electrostatic discharge, ESD bags protect sensitive electronic components such as microchips, circuit boards, and integrated circuits.

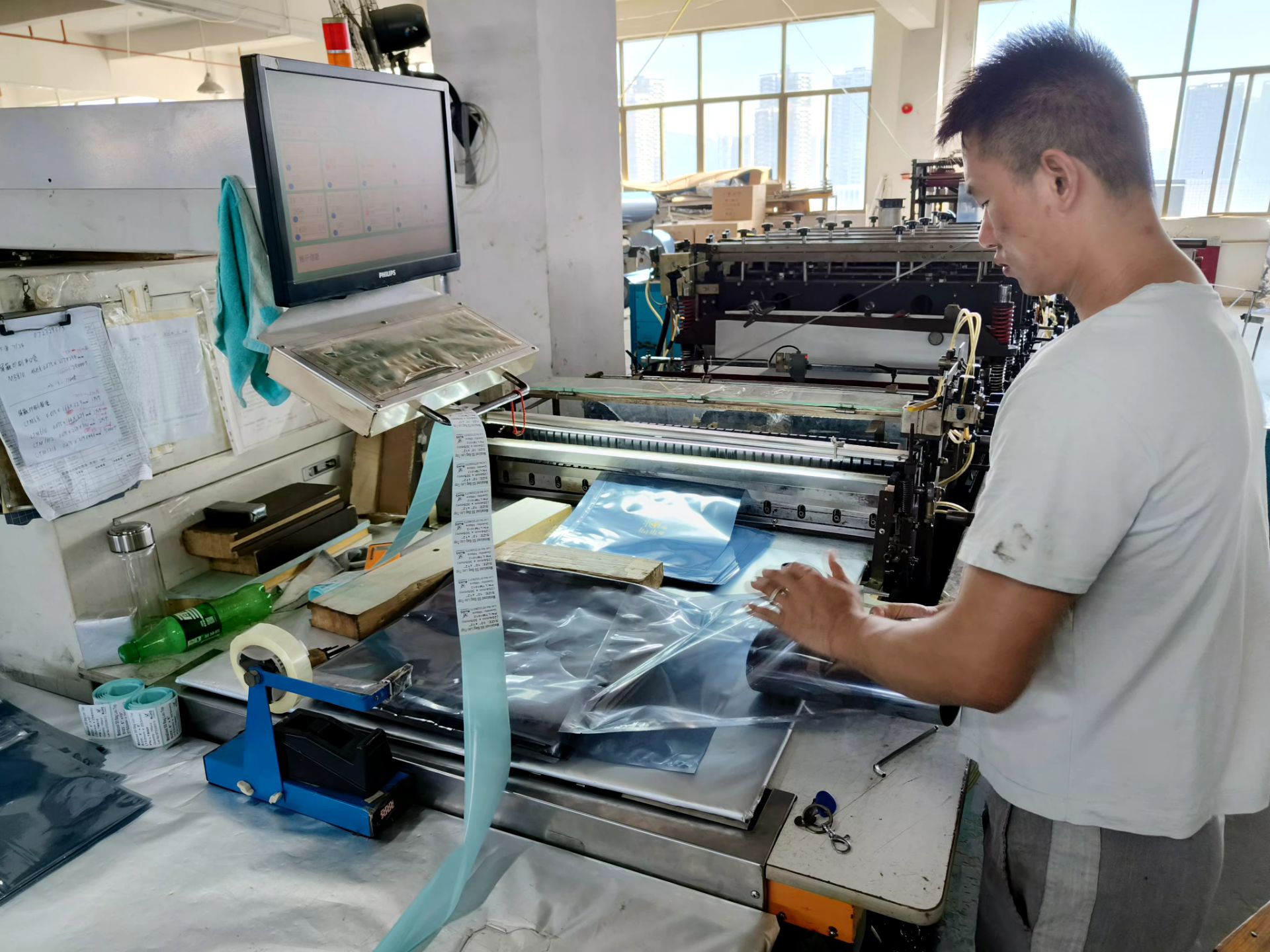

Materials and Manufacturing Processes

ESD bags are typically made from polyethylene (PE) or polypropylene (PP), which are flexible, durable, and cost-effective materials. These bags may also be metallized to enhance their protective properties.

Common Materials:

Polyethylene (PE): Lightweight and flexible, often used for basic ESD protection.

Polypropylene (PP): More rigid than PE, used for more robust packaging needs.

Manufacturing Processes:

Co-Extrusion: Multiple layers of materials are fused together to create a bag with varied protective characteristics.

Coating: Bags are coated with conductive materials (such as carbon) to enhance their ability to dissipate static charges.

3. Different Colors of ESD Packaging Bags

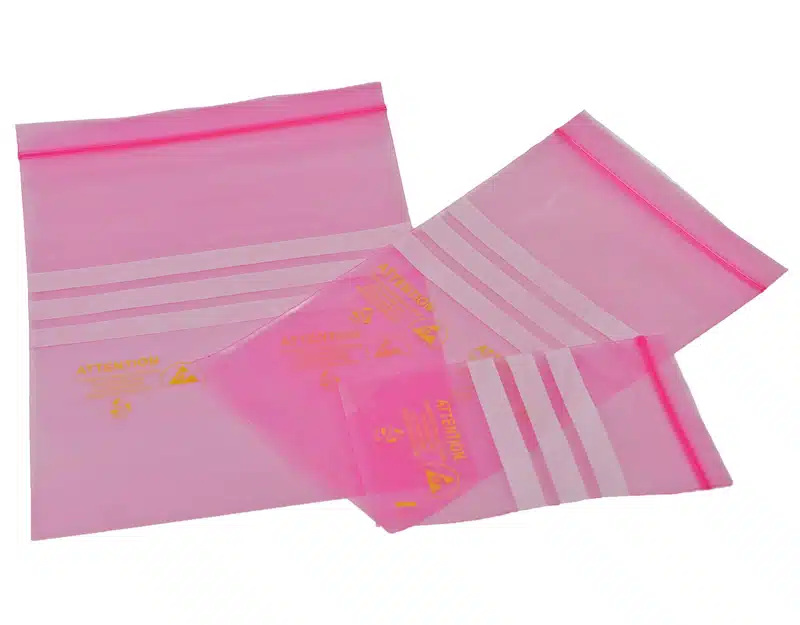

Pink ESD Packaging Bags

Features: Pink ESD bags are widely used for general purposes. These bags provide effective protection against static buildup but are not as conductive as some of the other colors.

Applicable Scenarios: Pink bags are typically used for general electronic components, small circuit boards, and assemblies that are less sensitive to electrostatic discharge. They offer adequate protection for most components in typical handling environments.

Black ESD Packaging Bags

Features: Black ESD bags are known for their high conductivity, providing superior protection against electrostatic discharge. The black color indicates the presence of conductive carbon or other materials that make the bags highly effective at dissipating static charges.

Applicable Scenarios: These bags are ideal for highly sensitive electronic components, such as integrated circuits (ICs), microprocessors, and other precision equipment that require a high level of protection from static electricity.

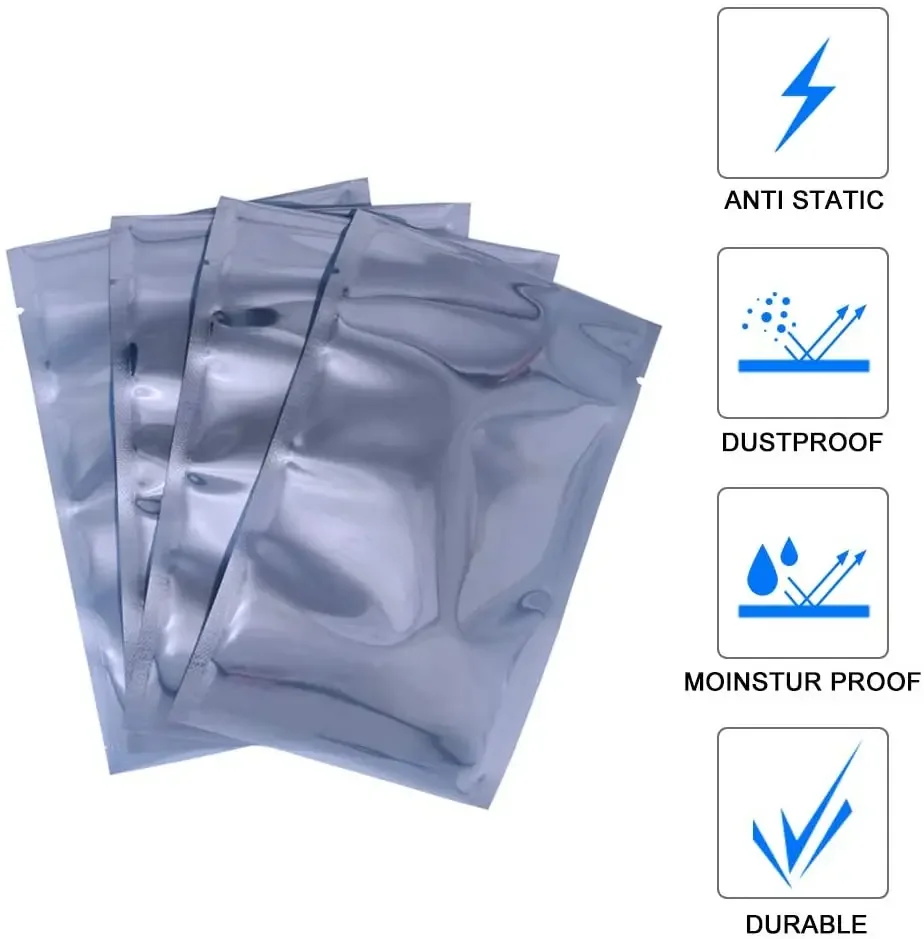

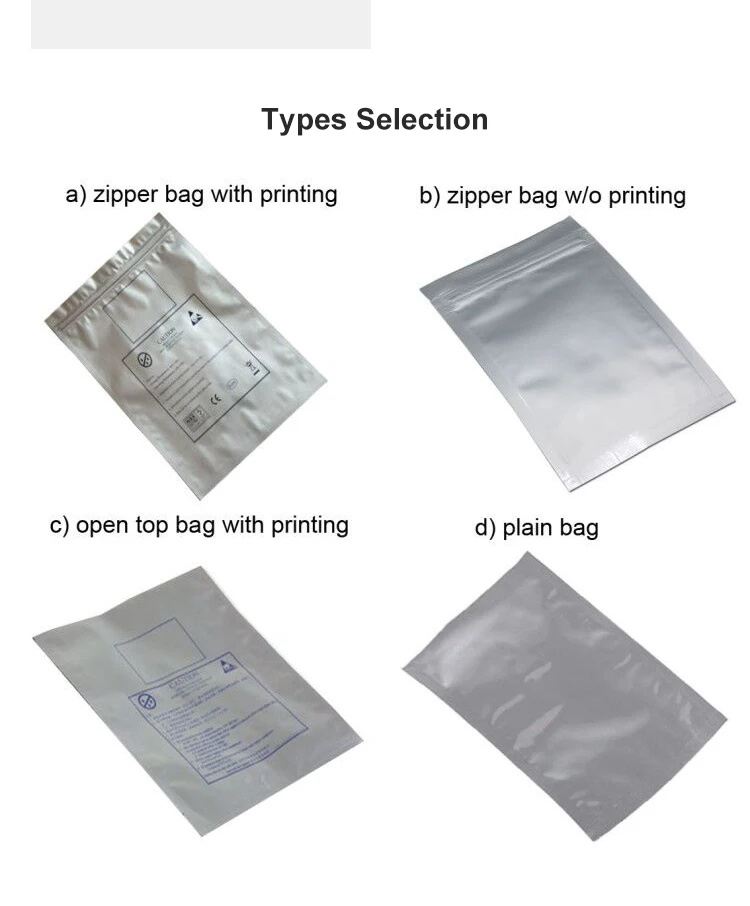

Silver ESD Packaging Bags

Features: Silver ESD bags are metallized and offer enhanced shielding against both static charges and electromagnetic interference (EMI). They are designed to protect components from a broader range of external environmental factors.

Applicable Scenarios: Silver bags are typically used for electronic equipment that requires high levels of protection, such as military electronics, aerospace components, and high-value electronics in industrial environments. They are also used for devices susceptible to EMI, offering an additional layer of shielding.

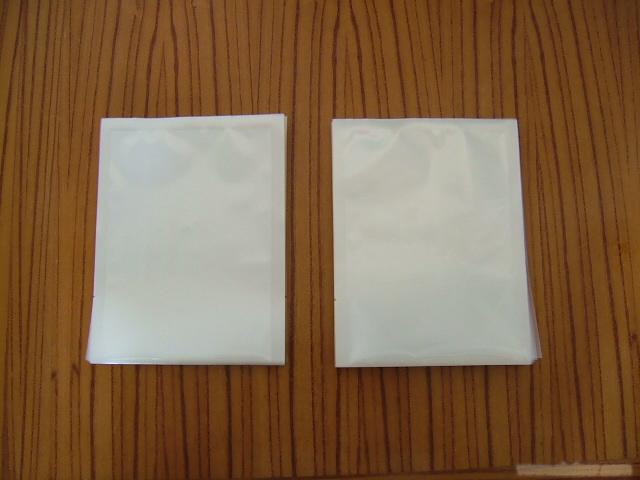

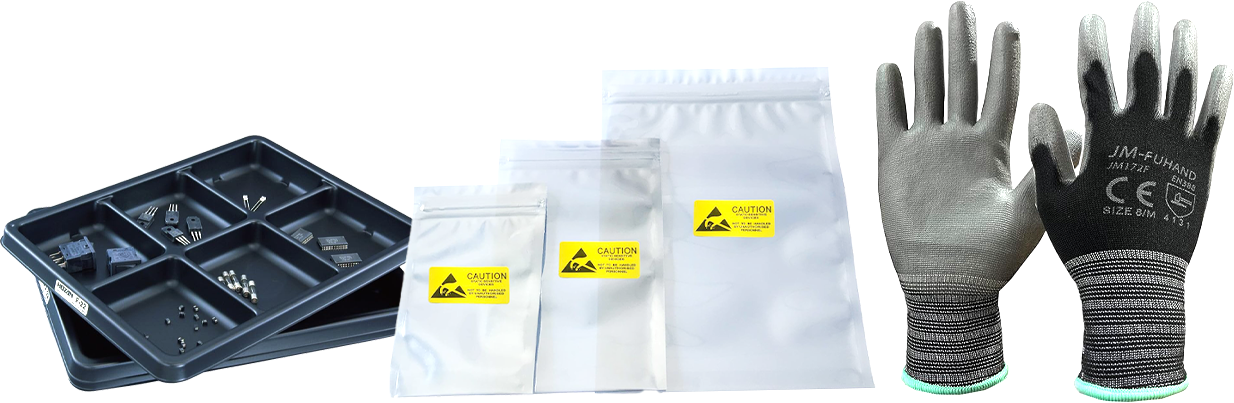

White ESD Packaging Bags

Features: White ESD bags are similar in performance to pink bags, offering good protection against static buildup. However, the white color allows for high transparency, making it easier to inspect the contents.

Applicable Scenarios: White ESD bags are often used when visibility of the contents is important. They are commonly used for components that need to be checked for defects, such as semiconductor chips or precision mechanical parts.

Gray ESD Packaging Bags

Features: Gray ESD bags fall between pink and black in terms of conductivity. They offer a balanced level of protection, suitable for components that do not require the extreme protection provided by black bags.

Applicable Scenarios: These bags are used for components with medium sensitivity to electrostatic discharge. They are ideal for general electronic parts and equipment that require moderate protection.

4. Performance Comparison of ESD Packaging Bags of Different Colors

Antistatic Performance

Pink and gray bags offer basic protection against static charges, suitable for general handling of electronic components.

Black and silver bags provide the highest level of protection, ideal for sensitive and high-value components.

Transparency

White ESD bags provide the highest transparency, allowing users to inspect the contents easily.

Pink and gray bags offer moderate transparency, while black and silver bags are opaque and do not allow visibility of the contents.

Conductive Performance

Black ESD bags have the best conductive properties, with a high ability to dissipate static charges.

Silver bags offer strong shielding, though their conductive performance may not match that of black bags.

Pink, white, and gray bags provide lower conductivity, with gray offering a balance between protection and cost.

Shielding Effect

Silver bags offer the best shielding performance, protecting against both static electricity and electromagnetic interference (EMI).

Black bags provide excellent shielding against static, but their EMI shielding is less effective compared to silver bags.

Pink, white, and gray bags provide basic shielding with varying degrees of effectiveness.

Cost

Pink and white ESD bags are typically the least expensive options, making them suitable for bulk packaging of less sensitive components.

Gray and black bags are slightly more expensive, with black bags being the most costly due to their higher conductivity and protection levels.

Silver bags are the most expensive due to their advanced metallized coating and superior shielding properties.

5. Choosing the Right ESD Packaging Bag

Considerations

When selecting an ESD packaging bag, consider the following factors:

Sensitivity of Electronic Components: Highly sensitive components require black or silver bags, while less sensitive parts can be safely stored in pink or gray bags.

Product Use Environment: Components exposed to harsh conditions or environments with high levels of electromagnetic interference may require silver ESD bags for additional shielding.

Cost Budget: For bulk packaging of low-cost components, pink or gray bags may be suitable. However, for high-value or precision components, investing in black or silver bags is necessary.

Transparency Requirements: If visual inspection is important, white ESD bags should be chosen for their transparency.

6. Future Trends

New Materials and New Technologies

Innovative materials like nanomaterials and smart coatings are being developed to enhance the performance of ESD packaging bags. These advancements promise even better static protection, reduced weight, and lower costs.

Environmental Protection and Sustainability

As the demand for eco-friendly solutions grows, manufacturers are exploring biodegradable ESD bags and recyclable materials. The push for sustainability is leading to the development of packaging solutions that are both protective and environmentally responsible.

Intelligent Applications

With the rise of the Internet of Things (IoT) and smart logistics, ESD packaging bags may incorporate smart features, such as RFID tags or sensors, to track components throughout the supply chain. This could further improve the handling and protection of electronic parts.

7. Conclusion

In conclusion, the color of an ESD packaging bag is not just a matter of aesthetics; it plays a significant role in determining the level of protection offered to electronic components. Whether you're handling highly sensitive microprocessors or general circuit boards, selecting the right color ensures that your components remain safe from electrostatic discharge. By understanding the differences between pink, black, silver, white, and gray ESD bags, manufacturers can make informed decisions about which bags are most appropriate for their specific applications. With advancements in materials and technology, the future of ESD packaging promises even more efficient, sustainable, and intelligent solutions to protect electronic components.
